JOSEPH
MARPLES
LTD.
Established
in 1840
Craftsmans hand tools
Made in Sheffield

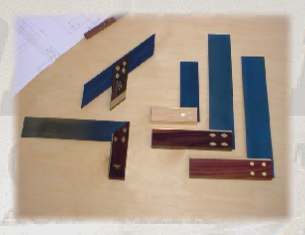

The stocks are made of Rosewood, the blade from tempered, blued steel. They have a machined brass face for protection against damage and accuracy. The blade is secured by means of a brass diamond washer and steel rivet, or all brass round rivets.
All our try squares are manufactured to BS3322. Each square is tested for accuracy twice during manufacture and again immediately prior to despatch. The squares are tested on both the inside and
outside faces, our specification for the internal angle is twice as accurate as that specified in the British Standard, an accuracy better than 0.01mm/10mm blade length.
Rosewood Mitre square
As the name suggests enables setting of 45° mitres. Made to the same specification as the try squares.
Rosewood Try & Mitre Square
This square combines the functions of both try & mitre squares.
A range of beech try squares is available made to the same accuracy as above but only with the round brass rivets.
outside faces, our specification for the internal angle is twice as accurate as that specified in the British Standard, an accuracy better than 0.01mm/10mm blade length.
Rosewood Mitre square
As the name suggests enables setting of 45° mitres. Made to the same specification as the try squares.
Rosewood Try & Mitre Square
This square combines the functions of both try & mitre squares.
